Attachment Component
The Attachment component lets an entity attach to a bone on the skeleton of another entity.

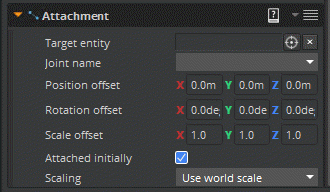

Attachment Component Properties
The Attachment component has the following properties.
| Name | Description |
|---|---|
| Target entity | Specifies the character entity that you want to attach. |
| Joint name | Specifies the joint that you want to attach to the entity. |
| Position offset | Specifies the x, y, and z local position offset from the target bone. |
| Rotation offset | Specifies the x, y, and z local rotation offset from the target bone. |
| Scale offset | Specifies the x, y, and z local scale offset from the target bone. |
| Attached initially | Specifies whether to attach to the target entity automatically. |
| Scaling | Specifies how the object scaling is determined. You can specify the following values: |
EBus Request Bus Interface
Use the following request functions with the event bus (EBus) interface to communicate with other components of your game.
For more information, see Working with the Event Bus (EBus) system.
| Function Name | Description | Parameters | Scriptable |
|---|---|---|---|
| Attach | Changes the attachment target for an entity. The entity will detach from its previous target. | targetEntityId - ID of the entity in which to attach. targetBoneName - Name of bone in which to attach the entity. If a bone is not found, then attach to target entity’s transform origin. offsetTransform - Attachment’s offset from target. | Yes |
| Detach | Detaches the target from the entity. | None | Yes |
| SetAttachmentOffset | Update entity’s offset from target. | offsetTransform - Attachment’s offset from target. | Yes |
EBus Notification Bus Interface
Use the following notification functions with the EBus interface to communicate with other components of your game.
For more information, see Working with the Event Bus (EBus) system.
| Function Name | Description | Parameters | Scriptable |
|---|---|---|---|
| OnAttached | Indicates that the entity has attached to the target. | targetEntityId - ID of the target in which is being attached. | Yes |
| OnDetached | Indicates that the entity is detaching from its target. | targetEntityId - ID of the target in which is being detached. | Yes |
