Grid Component
The Grid component renders a wireframe grid. It is primarily used in scene-building workflows to set a frame of reference and visualize relative sizes and distances between objects.
Provider

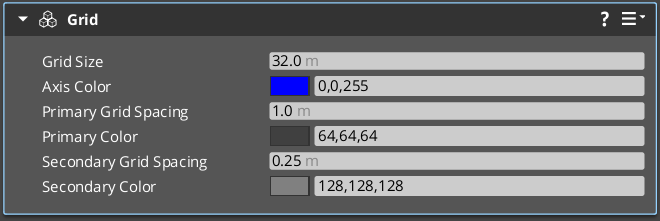

Grid Component Properties
The Grid component has simple properties for changing its size and appearance.
| Property | Description | Values | Default |
|---|---|---|---|
| Grid Size | The total grid size in meters. | 0.0 - 1,000,000 | 32.0 |
| Axis Color | The color used for drawing grid lines for the main axis. | (0-255, 0-255, 0-255) | (0, 0, 255) |
| Primary Grid Spacing | The distance between grid lines drawn in the primary color. | 0.1 to Infinity | 1.0 |
| Primary Color | The color used for drawing primary grid lines. | (0-255, 0-255, 0-255) | (64, 64, 64) |
| Secondary Grid Spacing | The distance between grid lines drawn in the secondary color. | 0.1 to Infinity | 0.25 |
| Secondary Color | The color used for drawing secondary grid lines. | (0-255, 0-255, 0-255) | (128,128,128) |
GridComponentRequestBus
| Method Name | Description | Parameter | Return | Scriptable |
|---|---|---|---|---|
| ‘SetSize’ | Sets the size of the entire grid. | Size: Float | None | Yes |
| ‘SetPrimarySpacing’ | Sets spacing between primary grid lines. | Spacing: Float | None | Yes |
| ‘SetSecondarySpacing’ | Sets spacing between secondary grid lines. | Spacing: Float | None | Yes |
| ‘SetAxisColor’ | Sets the color of the grid axis lines. | Line Color: Color | None | Yes |
| ‘SetPrimaryColor’ | Sets the color of primary grid lines. | Line Color: Color | None | Yes |
| ‘SetSecondaryColor’ | Sets the color of secondary gridlines. | Line Color: Color | None | Yes |
| ‘GetSize’ | Gets the size of the entire grid. | None | Size: Float | Yes |
| ‘GetPrimarySpacing’ | Gets spacing between primary grid lines. | None | Spacing: Float | Yes |
| ‘GetSecondarySpacing’ | Gets spacing between secondary grid lines. | None | Spacing: Float | Yes |
| ‘GetAxisColor’ | Gets the color of the grid axis lines. | None | Line Color: Color | Yes |
| ‘GetPrimaryColor’ | Gets the color of primary grid lines. | None | Line Color: Color | Yes |
| ‘GetSecondaryColor’ | Gets the color of secondary gridlines. | None | Line Color: Color | Yes |
GridComponentNotificationBus
| Method Name | Description | Parameter | Return | Scriptable |
|---|---|---|---|---|
| ‘OnGridChanged’ | Notify any handlers that the grid has been modified. | None | None | No |
