PostFX Gradient Weight Modifier Component
The PostFX Gradient Weight Modifier component modifies the blending weight of post-processing effects (PostFX) by using another entity’s gradient signal as a masking operation.
Provider
Dependencies

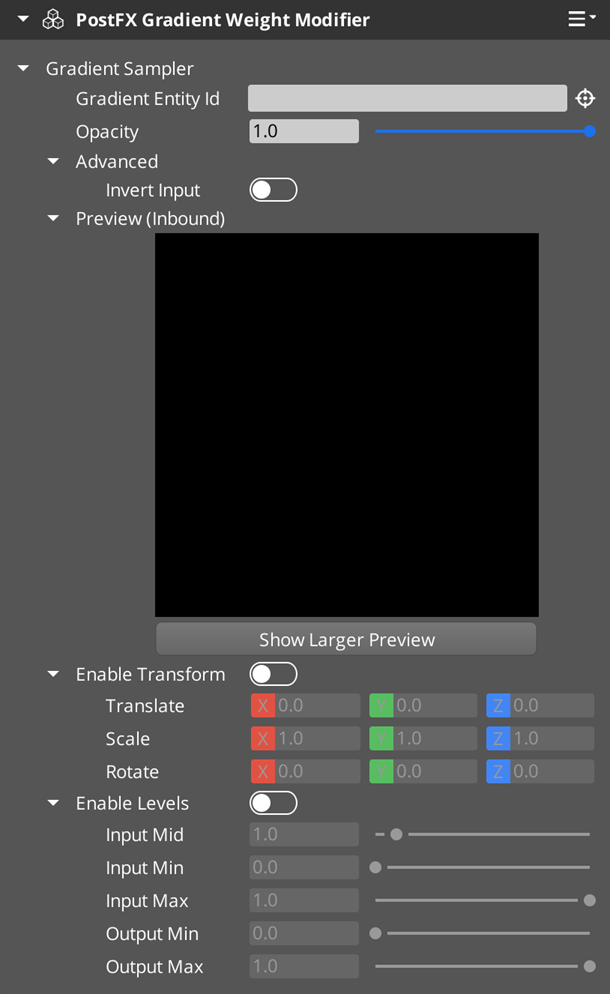

Gradient Sampler properties
| Property | Description | Values | Default |
|---|---|---|---|
| Gradient Entity Id | A reference to a separate entity that provides a gradient. | EntityId | None |
| Opacity | Sets the opacity of the input gradient. | Float: 0.0 - 1.0 | 1.0 |
| Invert Input | Inverts the values of the input gradient. | Boolean | Disabled |
| Preview (Inbound) | Displays the gradient provided by the entity set in Gradient Entity Id. | ||
| Enable Transform | If Enabled, the translation, scale, and rotation of the input gradient may be modified. | Boolean | Disabled |
| Translate | Sets the translation of the input gradient. | Vector3: -Infinity to Infinity | X:0.0, Y:0.0, Z:0.0 |
| Scale | Sets the scale of the input gradient. | Vector3: 0.0001 to Infinity | X:1.0, Y:1.0, Z:1.0 |
| Rotate | Sets the rotation of the input gradient. | Vector3: -Infinity to Infinity | X:0.0, Y:0.0, Z:0.0 |
| Enable Levels | If Enabled, the input and output values of the input gradient may be modified. | Boolean | Disabled |
| Input Mid | Sets the median value of the input gradient. | Float: 0.0 - 1.0 | 1.0 |
| Input Min | Sets a minimum value for the input gradient. | Float: 0.0 - 1.0 | 0.0 |
| Input Max | Sets a maximum value for the input gradient. | Float: 0.0 - 1.0 | 1.0 |
| Output Min | Sets a minimum value for the output gradient. | Float: 0.0 - 1.0 | 0.0 |
| Output Max | Sets a maximum value for the output gradient. | Float: 0.0 - 1.0 | 1.0 |
Usage

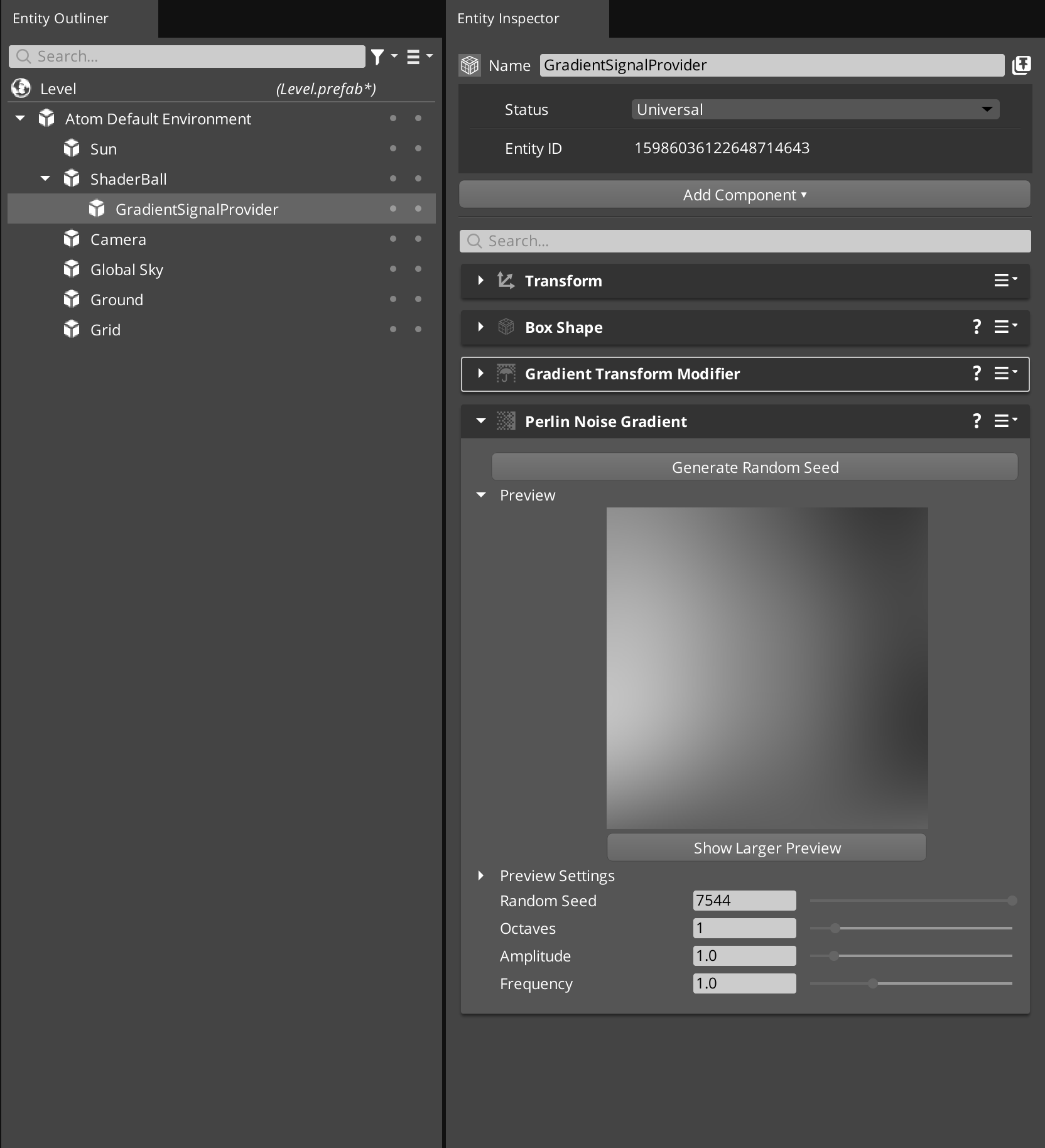

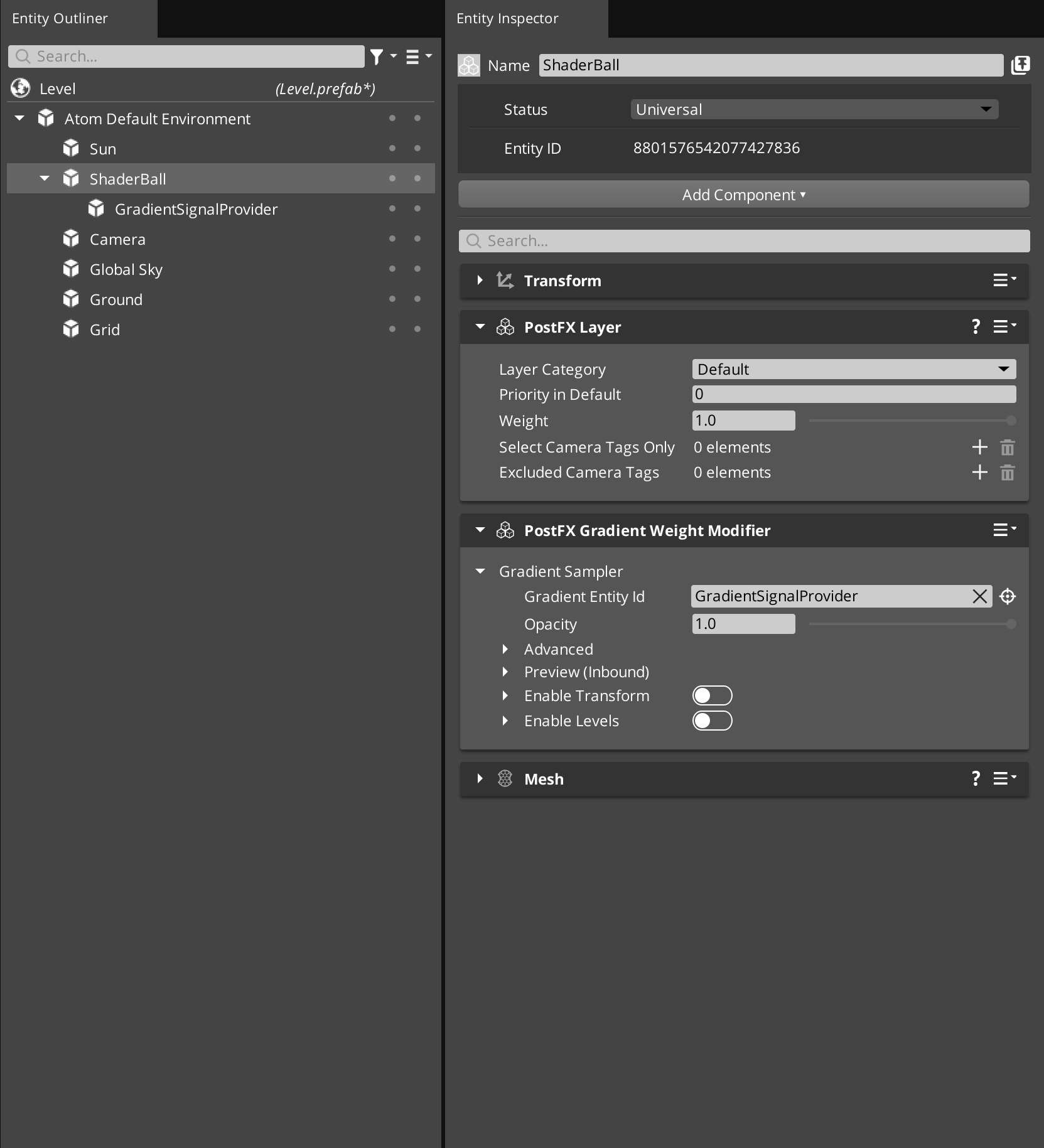

In this example, there are two entities: ShaderBall and GradientSignalProvider. The ShaderBall entity’s PostFX Gradient Weight Modifier component references the GradientSignalProvider entity in its Gradient Entity Id property. The weight of the PostFX depends on the gradient that GradientSignalProvider inputs.
For more information on gradient signal providers, refer to the list of Gradient components and Gradient Signal Gem.
